H415
Harvester Head
- 1,330 kg / 2,932 lb
- Weight (Without Rotator & Link)
- 28 MPa / 4,061 psi
- Hydraulic Requirements
- 750 mm / 29.5 in
- Cutting Capacity
- 460 mm / 18.1 in
- Delimbing Diameter Tip-to-Tip

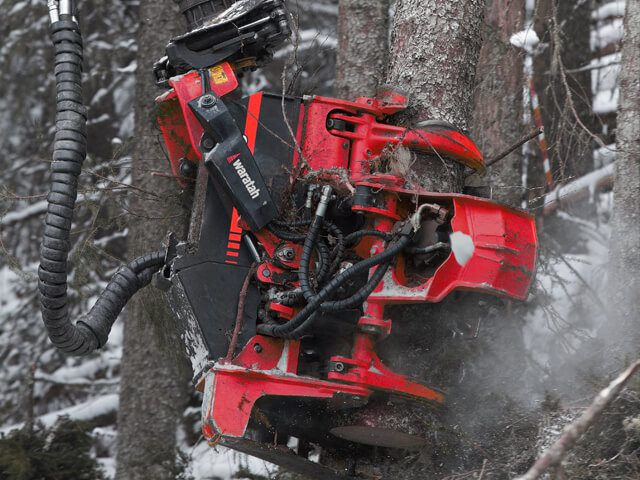

The Waratah H415 Harvester Head combines large-time-cutting power with excellent delimbing quality. The H415 is hard to beat when it comes to productivity, uptime, and low daily operating costs.
The H415 gives unprecedented tree-processing performance, especially in large timber. New feed-roller-arm geometry ensures rollers grip solidly and reliably carry trunks in all diameter ranges.
The H415 offers a solution for all different kinds of clearfelling with its three options for variable stem types: standard (narrow stem), buttress (wide stem), and top saw (processing and hardwood).
Technical Data
| Dimensions: | Width, head open | 1720 | |
| Width, head closed | 1200 | ||
| Height without rotator and link | 1510 | ||
| Weight: | Without rotator and link | 1330 kg | 2,932 lb |
| Felling/Cutting: | SuperCut 100 saw unit, automatic chain tensioning | Standard | |
| Maximum cut diameter [mm] | 750 | ||
| Length of saw bar [mm] | 825/900 | ||
| Chain type | .404 | ||
| Chain speed [m/s] | 40 | ||
| Feeding: | 4WD with with steel feed rollers | ||
| Gross feed force [kN] | 400 / 630-cc: | 27 | |
| 500 / 780-cc: | 30 | ||
| 1014 / 315-cc: | 25–42 | ||
| Maximum feed speed [m/s] | 2.9–7.0 | ||
| Maximum roller opening [mm] | 680 | ||
| Delimbing [mm]: | Delimbing knives | 4 moving, 2 fixed | |
| Delimbing diameter, tip to tip | 460 | ||
| Maximum opening, upper knives | 680 | ||
| Maximum opening, lower knives | 730 | ||
| Hydraulic System: | Maximum operating pressure [MPa] | 28 | |
| Recommended pump capacity [l/min] | 260–340 | ||
| Control and Measuring System: | For adaptation, contact your Waratah dealer. | ||
Optional Configurations
| Color marking | Stump treatment |
| Multi-tree-handling (MTH) | Debarking feed rollers |
| Moipu feed rollers | Steel thumbnail feed rollers |
| Steel V-profile feed rollers | Steel ribbed feed rollers |
| Chain and saw-bar kits | Hydraulic hose kit |
| Top saw |
Not all models available in all countries. Service and support may also vary by region. Please contact a dealer for more information.
