H415X
Harvester Head
- 1365 kg / 3,009 lb
- Weight (Without Rotator & Link)
- 28 MPa / 4,061 psi
- Hydraulic Requirements
- 710 mm / 28 in
- Cutting Capacity
- 460 mm / 18.1 in
- Delimbing Diameter Tip-to-Tip

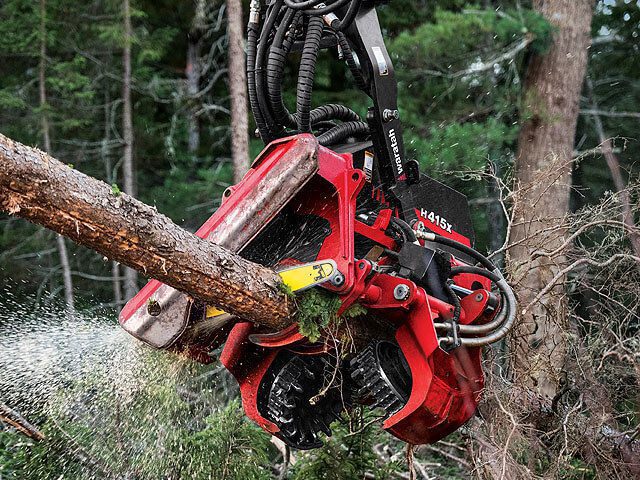

The Waratah H415X harvesting head is purpose-built for tracked harvesters and features a rugged main saw box with heavier steel plating, extra component guarding, hose protection, and increased drive arm durability for demanding track machine applications. The H415X four roller feed arm geometry ensures rollers grip solidly in all diameters, improving responsiveness with unprecedented tree-processing performance - especially in large timber.
Additionally, the H415X offers options for many applications, with multi-tree handling, integrated top saw (for processing and hardwood), with feed wheel or knife variations for variable stem types.
Technical Data
| Dimensions: | Width, head open | 1720 | |
| Width, head closed | 1200 | ||
| Height without rotator and link | 1510 | ||
| Weight: | Without rotator and link | 1365 | (With top saw 1555) |
| Felling/Cutting: | SuperCut 100 saw unit, automatic chain tensioning | Standard | |
| Maximum cut diameter [mm] | 710 | ||
| Length of saw bar [mm] | 825/900 | ||
| Chain type | .404 | ||
| Chain speed [m/s] | 40 | ||
| Feeding: | 4WD with with steel feed rollers | ||
| Gross feed force [kN] | 400 / 630-cc: | 27 | |
| 500 / 780-cc: | 30 | ||
| 1014 / 315-cc: | 25–42 | ||
| Maximum feed speed [m/s] | 2.9–7.0 | ||
| Maximum roller opening [mm] | 680 | ||
| Delimbing [mm]: | Delimbing knives | 4 moving, 2 fixed | |
| Delimbing diameter, tip to tip | 460 | ||
| Maximum opening, upper knives | 680 | ||
| Maximum opening, lower knives | 730 | ||
| Hydraulic System: | Maximum operating pressure [MPa] | 28 | |
| Recommended pump capacity [l/min] | 260–340 | ||
| Control and Measuring System: | For adaptation, contact your Waratah dealer. | ||
Optional Configurations
| Color marking | Stump treatment |
| Multi-tree-handling (MTH) | Debarking feed rollers |
| Moipu feed rollers | Steel thumbnail feed rollers |
| Steel V-profile feed rollers | Steel ribbed feed rollers |
| Chain and saw-bar kits | Hydraulic hose kit |
| Top saw |
Not all models available in all countries. Service and support may also vary by region. Please contact a dealer for more information.
