H212 Harvester Head

H212

Harvester Head

Weight (Without Rotator, Link or Multi-Tree Handling) icon
Weight (Without Rotator, Link or Multi-Tree Handling)
770 kg / 1,698 lb
Hydraulic Requirements icon
Hydraulic Requirements
28 MPa / 4,061 psi
Cutting Capacity icon
Cutting Capacity
520 mm / 20.5 in
Delimbing Diameter Tip-to-Tip icon
Delimbing Diameter Tip-to-Tip
360 mm / 14.2 in
Where to buy

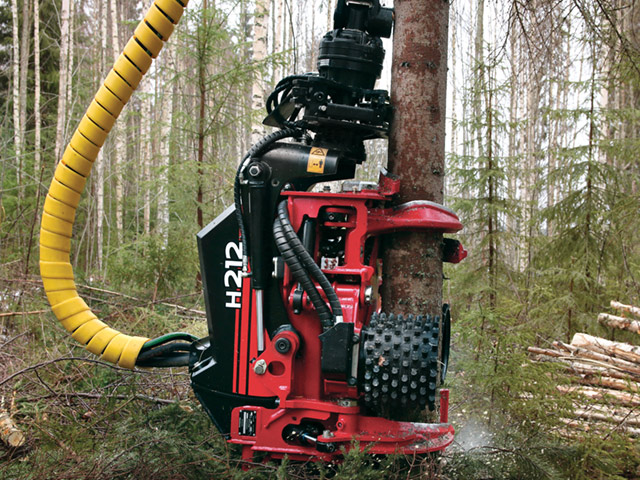

Built for performance and speed, the compact and agile H212 delivers big productivity for harvesting, processing and debarking applications. With its robust and nimble design, this all-around capable head is a little giant in the forest.

The H212 features the new and highly efficient SuperCut 100S saw unit with improved auto tensioning and easier servicing, which can fell and process trees up to 520 mm (20.5 in.) in diameter. The delimb arms, which are designed to provide premium delimbing, complement the feeding power and grip of the drive arms on large or crooked stems.

The narrow head design provides excellent visibility even when knives and rollers are open, which helps increase agility in small diameter dense stands. The saw box also provides good visibility for aiming felling cuts as well as pivot position for efficient cutting.

Additionally, the H212 utilizes the TimberRiteTM H-16 control system. This system provides unique versatility with configurable settings for improved head performance, productivity and measuring accuracy.

Technical Data

Dimensions: Height, std tilt frame, without rotator and link (mm/in.) 1360 / 53.5
Width, arms open (mm/in.) 1150 / 45.3
Width, arms closed (mm/in.) 1025 / 40.4
Weight: 770 / 1698 (Std)
830 / 1830 (Incl. MTH)
Delimbing: Front knife Fixed
Maximum opening upper knives (mm/in.) 500 / 19.7
Delimbing diameter tip to tip (mm/in.) 360 / 14.2
Rear knife (mm/in.) One
Rear knife maximum opening 550 / 21.7
Feeding: Quantity drive rollers Two
Maximum feed roller opening (mm/in.) 440 / 17.3
Maximum feed force 398 cc motors (kN/lbf) 20 / 4496
Maximum feed speed (m/s, ft/s) 5.4 / 17.7
Cutting: Maximum felling cut diameter (64cm bar) (mm/in.) 520 / 20.5
Maximum saw bar length (mm/in.) 64 / 25.2
Chain type (mm/in.) 10 /.404
MTH Capacity (measured at DBH) (mm/in.) 2 stems @ 130 / 5.1 3 stems @ 100 / 3.9

Optional Configurations

Adaptation to other control systems Color marking
Stump treatment (through nozzle, saw bar, or both) Processing upper delimb knives
Multi-tree handling Saw lubrication (bar oil / greasing option)
HD tilt frame for tracked carriers Snow protection
Measuring wheel options Eucalyptus debarking configuration option
Feed Wheels: Eucalyptus debarking; Steel thumbnail; Steel ribbed

Not all models available in all countries. Service and support may also vary by region. Please contact a dealer for more information.
