HTH623C LP LOADER PROCESSOR

HTH623C LP

Loader Processor

Net Weight icon
3140 kg / 6,923 lb.
Net Weight
Max Hydraulic Requirements icon
35 MPa / 5,075 psi
Max Hydraulic Requirements
Max Delimb Opening icon
939 mm / 37 in.
Max Delimb Opening
Max Feed Roller Opening icon
875 mm / 34 in.
Max Feed Roller Opening
Max Sawing Capacity icon
750 mm / 29 in.
Max Sawing Capacity
Carrier Size icon
25-34 metric ton
Carrier Size
Where to buy

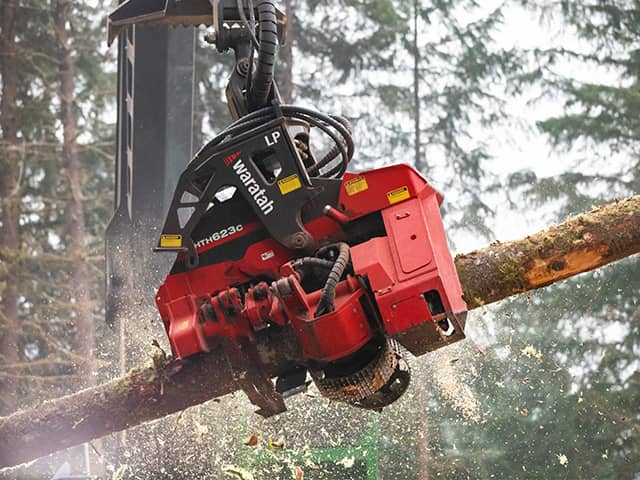

The HTH623C LP is a multi-use head built to work for loading and processing applications, especially in tight spaces. When a landing doesn’t have the space for multiple pieces of equipment, the HTH623C LP is the right head for the job. This model features a shorter tilt frame, which permits efficient loading of trucks, improved reach for higher deck piles and more compatibility with live heels – all while maintaining easy access to hoses and valve.

Its large delimb opening allows for grabbing large single logs and multiple logs, which increases efficiency and productivity for clearing the chute and loading trucks more efficiently. The wide opening delimb arms can also help improve log deck picking.

Technical Data

Dimensions Width, head open (mm/in.) 2000 / 79
Weight Excluding link and some options (kg/lb.) 3140 / 6,923
Rotation
360 continuous
Delimbing Delimbing knives 1 fixed/floating, 2 moving, 1 fixed rear
  Maximum delimb opening (mm/in.) 939 / 37
  Minimum delimb close (mm/in.) 120 / 4.7
Drive Quantity drive rollers 3
  Motor cc - option 1 (drive, fixed) (837, 500)
  Maximum feed speed - option 1 (m/s, ft/s) 5.2 / 17
  Maximum roller opening (mm/in.) 875 / 34
  Minimum feed arm diameter (mm/in.) 65 / 2.6
Top Saw
Maximum cut diameter (mm/in.) 450 / 18
  Length of saw bar (mm/in.) 590 / 23
  Chain type (in.) 0.404
  Top saw motor displacement 19 cc
Carrier Range
25-34 metric tons
Butt/Felling Saw
Standard Saw Waratah AT 3/4"
  Maximum cut diameter (mm/in.) 750 / 30
  Length of saw bar (mm/in.) 900 / 35
  Chain type (in.) 3/4
  Saw motor 15 cc
  Oil tank capacity (L/gal.) 16 / 4.2
Hydraulic Requirements Maximum operating pressure (MPa/psi) 35 / 5,075
  Maximum pump capacity (L/min.,gal./min.) 320-360
85-95
Control and Measuring System TimberRite H-16

Optional Configurations

Optional Butt Saw SC100
Maximum cut diameter (mm/in.) 750 / 29.5
Length of saw bar (mm/in.) 820 / 32
No top saw Continuous 360-degree rotation
Color marking Stump spray - inquire
Fabricated processing upper delimb arms Cast processing upper delimb arms
Debarking feed rollers Steel thumbnail feed rollers
Alpine Non-aggressive fixed roller
Lower delimb (no)

Not all models available in all countries. Service and support may also vary by region. Please contact a dealer for more information.
