- Weight (Option dependent, without rotator, link, topsaw or multi-tree handling)
* with topsaw - 1591 kg / 3,508 lb.
1705 kg / 3,759 lb.*
- Max Hydraulic Requirements (Option dependent)
- 28 MPa / 4,061 psi
35 MPa / 5,076 psi
- Cutting Capacity
- 750 mm / 29.5 in.
- Delimbing Diameter Tip-to-Tip
- 450 mm / 17.7 in.
Overview & Specifications

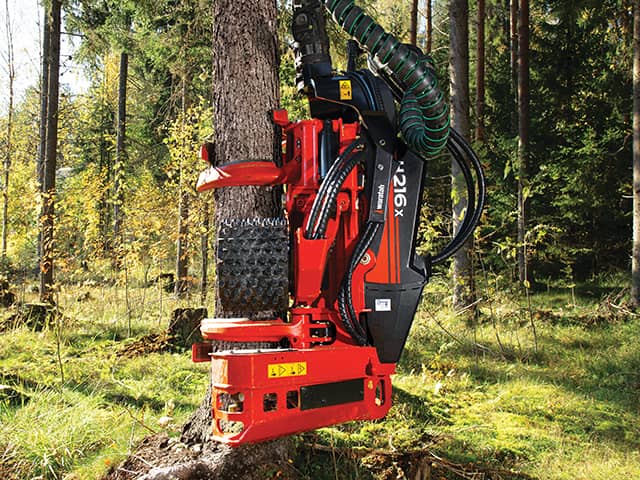

Tackle hardwood with ease with the head that’s built for tracked machines and harsh applications. The H216X harvester head features a robust design engineered for the brutal demands of hardwood, all while helping maximize accuracy and output.
This 200 Series head offers impressive heavy-duty features to withstand track machine boom forces and harsh hardwood stresses. Key design features provide high-performance feeding and agility, accurate length measuring and extra-large sawing capacity.
Working in other applications? This head is also equipped for softwood, debarking or multi-tree handling. The H216X is truly Built To Work®.
Technical Data
| Dimensions | Width, head open (mm/in.) | 1695 / 66.7 |
| Weight | Weight (Option dependent, without rotator, link, topsaw or multi-tree handling) (kg/lb.) | 1591 / 3,508 1705 / 3,759 (with topsaw) |
| Delimbing | Delimbing knives | 4 moving, 1 fixed |
| Delimbing diameter tip-to-tip (option dependent) (mm/in.) | 450 / 17.7 | |
| Maximum opening, upper knives (mm/in.) | 650 / 25.6 | |
| Maximum opening, lower knives (mm/in.) | 760 / 29.9 | |
| Drive | Quantity drive rollers | 2 |
| Motor cc - option 1 (single speed) | 702-cc | |
| - Gross feed force (kN) | 33.6 (@ 350 bar, 320 lpm) | |
| - Feed speed (m/s, ft/s) | 5.6 / 18 | |
| Motor cc - option 2 (single speed) | 780-cc | |
| - Gross feed force (kN) | 29.8 (@ 280 bar, 318 lpm) | |
| - Feed speed (m/s, ft/s) | 5 / 16.4 | |
| - Gross feed force (kN) | 37.3 (@ 350 bar, 320 lpm) | |
| - Feed speed (m/s, ft/s) | 5 / 16.4 | |
| Motor cc - option 3 (single speed) | 857-cc | |
| - Gross feed force (kN) | 32.8 (@ 280 bar, 318 lpm) | |
| - Feed speed (m/s, ft/s) | 4.5 / 14.7 | |
| - Gross feed force (kN) | 41 (@ 350 bar, 320 lpm) | |
| - Feed speed (m/s, ft/s) | 4.6 / 15 | |
| Motor cc - option 4 (single speed) | 934-cc | |
| - Gross feed force (kN) | 35.7 (@ 280 bar, 318 lpm) | |
| - Feed speed (m/s, ft/s) | 4.2 / 13.7 | |
| Motor cc - option 5 (multi-speed) | 1043/624-cc | |
| - Gross feed force (kN) | 39.9 (@ 280 bar, 318 lpm) | |
| - Feed speed (m/s, ft/s) | 3.7, 5.1 / 12.1, 16.7 | |
| Maximum roller opening (mm/in.) | 700 / 27.6 | |
| Minimum diameter (mm/in.) | 50 / 2 | |
| Butt/Felling Saw | Standard Saw | SuperCut 100S with auto chain tensioning |
| Maximum cut diameter (mm/in.) | 750 / 29.5 | |
| Length of saw bar (mm/in.) | 900 / 35.4 | |
| Chain speed (m/s, ft/s) | 40 / 131 | |
| Chain type (mm/in.) | 10 / 0.404 | |
| Saw motor | 32 cc | |
| Oil tank capacity (L/gal.) | 10 / 2.6 | |
| Top Saw | Maximum cut diameter (mm/in.) | 400 / 15.7 |
| Length of saw bar (mm/in.) | 600 / 23.6 | |
| Chain type (mm, in.) | 10 / 0.404 | |
| Chain speed (m/s, ft/s) | 40 / 131 | |
| Hydraulic System | Maximum operating pressure (MPa/psi) | 28 / 4061, 35 / 5076 |
| Recommended pump capacity (L/min.,gal./min.) | 260-370, 69-100 | |
| Carrier Size Range | Wheeled (metric ton) | 18-25 |
| Tracked (metric ton) | 16-25 | |
| Control and Measuring System | TimberRite H-16 | For other adaptations, contact your local Waratah dealer. |
Optional Configurations
| 280/350 bar feeding pressure | Find-end sensor |
| Color marking | Measuring wheels |
| Stump treatment | Saw bar grease lubrication |
| Multi-tree handling (MTH) | Rotators |
| Feed wheels - see brochure | Feed motors |
| Chain and saw-bar kits | Saw motors |
| Hose kits | Debarking kit |
| Top saw | Guarding |
| Processor knives | Uptime kit |
Not all models available in all countries. Service and support may also vary by region. Please contact a dealer for more information.
