HTH616C Series-III harvester head
From; Without Rotator and Link icon
From; Without Rotator and Link
1800 kg / 3,968 lb.
From; Without Link; Standard Rotator icon
From; Without Link; Standard Rotator
2000 kg / 4,409 lb.
Max Hydraulic Requirements icon
Max Hydraulic Requirements
35 MPa / 5,076 PSI
Max Delimb Opening icon
Max Delimb Opening
660 mm / 26 in.
Max Feed Roller Opening*<br>*Harvesting Knives icon
Max Feed Roller Opening*
*Harvesting Knives
685 mm / 27 in.
Max Sawing Capacity icon
Max Sawing Capacity
550 mm / 22 in.
Carrier Size icon
Carrier Size
20+ metric ton
Carrier Size icon
Carrier Size
20-30 metric tons
Where to buy

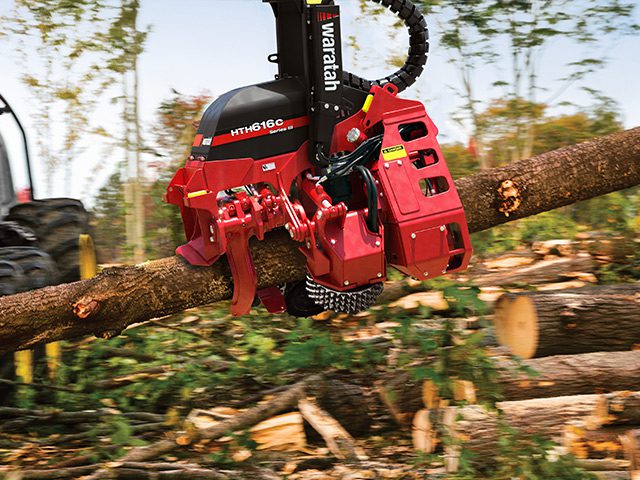

Featuring a highly efficient valve and extensive optionality, the versatile HTH616C Series-III harvester head is performance-ready for productivity on wheeled or tracked carriers.

Motor selections can be configured to complement the valve and improve feeding speed. A high torque motor option is available to help increase productivity in the toughest delimbing conditions.

The valve provides improved responsiveness in the delimb and drive arms to enhance grabbing stems, log handling and improves sawing performance – reducing processing times. The cast delimb arm design improves limb shedding and can be configured in processing or harvesting profiles.

This harvester has optional twin diameter sensors that provide better measuring when small end diameters are critical. Additionally, the head features more length measuring consistency, with more measuring arm travel and enhanced measuring arm responsiveness.

Technical Data

Dimensions Width, head open (mm/in) 1600/63
Weight Base weight excluding rotator, link and
some options (kg/lb)
  Base weight standard rotator, excluding link and some options (kg/lb) 2000/4,409
360 continuous or 320 degree
Delimbing Delimbing knives 1 fixed front, 2 moving*, 1 fixed rear
(*option for single lower delimb)
  Maximum delimb opening processing knives (mm/in.) 660 / 26
  Maximum delimb opening harvesting knives (mm/in.) 685 / 27
Drive Quantity drive rollers 3
  Motor cc - option 1 (drive, fixed) (500, 315)
  Maximum feed speed - option 1 (m/s, ft/s) 8.3 / 27
  Motor cc - option 2 (drive, fixed) (630, 400)
  Maximum feed speed - option 2 (m/s, ft/s) 6.6 / 21.6
  Motor cc - option 3 (drive, fixed) (800, 500)
  Maximum feed speed - option 3 (m/s, ft/s) 5.2 / 17.0
  Maximum roller opening (mm/in.) 680 / 27
  Minimum feed arm diameter (mm/in.) 50 / 2
Top Saw
Maximum cut diameter (mm/in.) 320 / 13
  Length of saw bar (mm/in.) 420 / 17
  Chain type (in.) 0.404
  Top saw motor displacement 10 cc
Butt/Felling Saw Standard Saw SC100
Maximum cut diameter (mm/in.) 550 / 22
Length of saw bar (mm/in.) 750 / 29
Chain type (in.) 0.404
Saw Motor 3/4" - 45 cc & .404 - 20 cc
Oil tank capacity (L/gal.) 10 / 2.6
Hydraulic System Maximum operating pressure (MPa/psi) 35 / 5,076
Maximum pump capacity (L/min.,gal./min.) 320-360 / 85-95
Carrier Size Range Wheeled (metric tons) 20+
  Tracked (metric tons) 20-30
Control and Measuring System TimberRite H-16

Optional Configurations

Optional Butt Saw - Waratah AT 3/4"
Maximum cut diameter (mm/in.) 550 / 22
Length of saw bar (mm/in.) 740 / 29
Feed rollers: steel thumbnail, debarking
No top saw Continuous 360-degree rotation
Color marking Stump spray - inquire
Cast processing upper delimb arms Cast harvesting (CTL) upper delimb arms
Alpine Optional lower delimb
Optional rotators (inquire) Second diameter sensor
Find end sensor Harvesting guarding
Snow hole guarding Pressure sensors (M, CD, T)

Not all models available in all countries. Service and support may also vary by region. Please contact a dealer for more information.
