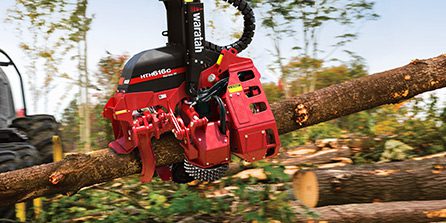

New HTH616C Series-III provides versatile productivity
Waratah Forestry Equipment has introduced a new generation of its HTH616C harvester head – the versatile HTH616C Series-III.
- 1800 kg / 3,968 lb.
- Without Rotator and Link
- 2000 kg / 4,409 lb.
- Without Link; Standard Rotator
- 35 MPa / 5,075 psi
- Max Hydraulic Requirements
- 660 mm / 26 in.
- Max Delimb Opening
- 685 mm / 27 in.
- Max Feed Roller Opening*
*Harvesting Knives
- 550 mm / 22 in.
- Max Sawing Capacity
- 20+ metric ton
- Carrier Size
- 20-30 metric tons
- Carrier Size
With a large delimb opening plus shorter tilt frame providing improved reach for high deck piles, the HTH623C LP is built to work productively in tight spaces.
- 3140 kg / 6,923 lb.
- Net Weight
- 35 MPa / 5,075 psi
- Max Hydraulic Requirements
- 939 mm / 37 in.
- Max Delimb Opening
- 875 mm / 34 in.
- Max Feed Roller Opening
- 750 mm / 29 in.
- Max Sawing Capacity
- 25-34 metric ton
- Carrier Size
Built for performance and speed, the compact and agile H212 delivers big productivity for harvesting, processing and debarking applications.
- 770 kg / 1,698 lb
- Weight (Without Rotator, Link or Multi-Tree Handling)
- 28 MPa / 4,061 psi
- Hydraulic Requirements
- 520 mm / 20.5 in
- Cutting Capacity
- 360 mm / 14.2 in
- Delimbing Diameter Tip-to-Tip
The H215E is a powerful, high-capacity new-generation harvester head purpose built for eucalyptus debarking and designed for use on large wheel harvesters and excavators.
- 1,690 kg / 3,726 lb
- Weight (Without Rotator & Link)
- 28 MPa / 4,061 psi
- Hydraulic Requirements
- 550 mm / 21.7 in
- Cutting Capacity
- 430 mm / 16.9 in
- Delimbing Diameter Tip-to-Tip
Innovatively designed for superior performance in late-thinning and final-harvest applications, the Waratah H270 Series II high-capacity harvester head comes with a package of improvements designed to work as hard as you.
- 1,350 kg / 2,976 lb
- Weight (Without Rotator & Link)
- 28 MPa / 4,061 psi
- Hydraulic Requirements
- 650 mm / 25.6 in
- Cutting Capacity
- 460 mm / 18.1 in
- Delimbing Diameter Tip-to-Tip
With a high capacity, power and agility, the H219 is ideal for late thinning and regeneration harvesting.
- 1970 kg / 4,343 lb.
- Weight (without rotator & link)
- 28 MPa / 4,061 psi
- Max Hydraulic Requirements
- 750 mm / 29.5 in.
- Cutting Capacity
- 510 mm / 20.1 in.
- Delimbing Diameter Tip-to-Tip
Primarily for tracked carrier applications, the H219X comes standard with a heavy-duty tilt frame for maximum productivity.
- 2050 kg / 4,519 lb.
- Weight (without rotator & link)
- 28 MPa / 4,061 psi
- Max Hydraulic Requirements
- 750 mm / 29.5 in.
- Cutting Capacity
- 510 mm / 20.1 in.
- Delimbing Diameter Tip-to-Tip
The Waratah H413 is designed to carry out a wide range of harvesting jobs from early to late thinnings, to light regeneration harvesting. It has outstanding multi-tree-handling qualities, a compact frame design, and excellent power-to-weight ratios.
- 940 kg / 2,072 lb
- Weight (Without Rotator & Link)
- 28 MPa / 4,061 psi
- Hydraulic Requirements
- 580 mm / 22.8 in
- Cutting Capacity
- 420 mm / 16.5 in
- Delimbing Diameter Tip-to-Tip
The Waratah H415 Harvester Head combines large-time-cutting power with excellent delimbing quality. The H415 is hard to beat when it comes to productivity, uptime, and low daily operating costs.
- 1,330 kg / 2,932 lb
- Weight (Without Rotator & Link)
- 28 MPa / 4,061 psi
- Hydraulic Requirements
- 750 mm / 29.5 in
- Cutting Capacity
- 460 mm / 18.1 in
- Delimbing Diameter Tip-to-Tip
The rugged H415HD is built to work on your toughest jobs. A heavy-duty tilt frame, feed motors and guarding provide even more durability.
- 1,401 kg / 3,089 lb.
- Weight (Without Rotator & Link)
- 28 MPa / 4,061 psi
- Hydraulic Requirements
- 750 mm / 29.5 in.
- Cutting Capacity
- 460 mm / 18.1 in.
- Delimbing Diameter Tip-to-Tip
The Waratah H415X harvesting head is purpose-built for tracked harvesters and features a rugged main saw box with heavier steel plating, extra component guarding, hose protection, and increased drive arm durability.
- 1365 kg / 3,009 lb
- Weight (Without Rotator & Link)
- 28 MPa / 4,061 psi
- Hydraulic Requirements
- 710 mm / 28 in
- Cutting Capacity
- 460 mm / 18.1 in
- Delimbing Diameter Tip-to-Tip
Characterized by its consistent performance and skill set in second thinnings and early regeneration cuttings, the versatile H424 is equally suited for processing or debarking applications.
- 1105 kg / 2,436 lb.
- Weight (Without Rotator & Link)
- 28 MPa / 4,061 psi
- Max Hydraulic Requirements
- 620 mm / 24.4 in.
- Cutting Capacity
- 430 mm / 17.0 in.
- Delimbing Diameter Tip-to-Tip
The Waratah H480C harvesting head combines large timber cutting-power with an excellent delimbing quality throughout its diameter range.
- 1,350 kg / 2,976 lb
- Weight (Without Rotator & Link)
- 28 MPa / 4,061 psi
- Hydraulic Requirements
- 650 mm / 25.6 in
710 mm / 28.0 in - Cutting Capacity
- 480 mm / 18.9 in
- Delimbing Diameter Tip-to-Tip
Building on the versatility, efficiency, and durability of the HTH616C, the HTH618C harvester head adds double bottom knives for increased stem coverage, resulting in improved delimbing or debarking quality.
- 2250 kg / 4,960 lb.
- Net Weight
- 35 MPa / 5,076 psi
- Max Hydraulic Pressure
- 510 mm / 20 in.
- Max Delimb Opening
- 680 mm / 27 in.
- Max Feed Roller Opening
- 550 mm / 22 in.
- Max Sawing Capacity
- 20-25 metric ton
- Carrier Size
The HTH622B Series-III delivers increased productivity, improved feeding and saw performance.
- 2450 kg / 5,401 lb.
- Net Weight
- 35 MPa / 5,075 psi
- Max Hydraulic Requirements
- 650 mm / 26 in.
- Max Delimb Opening
- 730 mm / 29 in.
- Max Feed Roller Opening
- 750 mm / 30 in.
- Max Sawing Capacity
- 24-30 metric ton
- Carrier Size
- 20-30 metric tons
- Carrier Size
Engineered for the toughest conditions, the new four-roller Waratah HTH622C 4x4 multistem processing head delivers the performance and proven innovation you expect from the industry leader.
- 2760 kg / 6,085 lb.
- Net Weight
- 35 MPa / 5,076 psi
- Max Hydraulic Pressure
- 650 mm / 26 in.
- Max Delimb Opening
- 780 mm / 31 in.
- Max Feed Roller Opening
- 750 mm / 30 in.
- Max Sawing Capacity
- 25-35 metric ton
- Carrier Size
The Waratah HTH623C harvester head delivers power, torque and speed. There is a wealth of power, strength and automated systems with this harvesting head.
- 3040 kg / 6,702 lb.
- Net Weight
- 35 MPa / 5,075 psi
- Max Hydraulic Pressure
- 700 mm / 28 in.
- Max Delimb Opening
- 875 mm / 34 in.
- Max Feed Roller Opening
- 750 mm / 30 in.
- Max Sawing Capacity
- 25-34 metric ton
- Carrier Size
Born to perform. With its effortless four wheel drive, and high torque feed motors, the H624C 4X4 provides unyielding delimbing power, and responsive feed speeds.
- 3560 kg / 7,848 lb.
- Net Weight
- 35 MPa / 5,076 psi
- Max Hydraulic Pressure
- 710 mm / 28 in.
- Max Delimb Opening
- 875 mm / 34 in.
- Max Feed Roller Opening
- 815 mm / 32 in.
- Max Sawing Capacity
- 27+ metric ton
- Carrier Size
Proven in medium to large wood harvesting and processing, Waratah's big-timber-tackling HTH624C harvester head can easily handle species such as radiata pine, poplar, and aspen.
- 3530 kg / 7,782 lb.
- Net Weight
- 35 MPa / 5,075 psi
- Max Hydraulic Pressure
- 760 mm / 30 in.
- Max Delimb Opening
- 850 mm / 34 in.
- Max Feed Roller Opening
- 810 mm / 32 in.
- Max Sawing Capacity
- 30+ metric ton
- Carrier Size
The aggressive HTH625C optimizes productivity with impressive log control. This high-performer flies through timber with great log handling with twin lower delimb arms.
- 4390 kg / 9,678 lb.
- Net Weight
- 35 MPa / 5,076 psi
- Max Hydraulic Pressure
- 800 mm / 31.5 in.
- Max Delimb Opening
- 850 mm / 34 in.
- Max Feed Roller Opening
- 900 mm / 35 in.
- Max Sawing Capacity
- 35+ metric ton
- Carrier Size
Go large or go home. Known for its capabilities in extra-large timber - the durable and iconic HTH626 Series II dominates big wood. Period.
- 4850 kg / 10,692 lb.
- Net Weight
- 35 MPa / 5,076 psi
- Max Hydraulic Pressure
- 900 mm / 35 in.
- Max Delimb Opening
- 980 mm / 39 in.
- Max Feed Roller Opening
- 860 mm / 34 in.
- Max Sawing Capacity
- 35+ metric ton
- Carrier Size
Unmatched strength plus versatility. Meet the FL100. This bonafide jack-of-all-trades owns the steepest of slopes and shovels the heaviest of timber, all while getting better logs to the landing. Simply put, it's a beast. And truly Built to Work™.
- 2995 kg / 6,600 lb
- Net Weight
- 35 MPa / 5,076 psi
- Hydraulic Requirements
- 1470 mm / 57.8 in
- Max Grapple Opening
- 1000 mm / 39.3 in
- Maximum Sawing Capacity
- 30+ metric ton
- Carrier Size
Waratah offers versatile, purpose-built harvester, forestry and logging cranes. These cranes are forest-ready, dramatically increase the working zone and provide optimum height and lift capacity.
- 1,150 kg / 2,535 lb
- CH610 Max. Load
- 10m / 393 in
- CH610 Outreach
- 2,300 kg / 5,070 lb
- CH610 Weight
Waratah offers versatile, purpose-built harvester, forestry and logging cranes. These cranes are forest-ready, dramatically increase the working zone and provide optimum height and lift capacity.
- 1,750 kg / 3,858 lb
- CH786 Max. Load
- 8.6m / 338 in
- CH786 Outreach
- 3,050 kg / 6,724 lb
- CH786 Weight
Waratah offers versatile, purpose-built harvester, forestry and logging cranes. These cranes are forest-ready, dramatically increase the working zone and provide optimum height and lift capacity.
- 990 kg / 1,980 lb
- CH95 - 7.6 Max. Load
- 7.9m / 310 in
- CH95 - 7.6 Outreach
- 1,600 kg / 3,520 lb
- CH95 - 7.6 Weight
Waratah offers versatile, purpose-built harvester, forestry and logging cranes. These cranes are forest-ready, dramatically increase the working zone and provide optimum height and lift capacity.
- 1,230 kg / 2,706 lb
- CH135S - 8.3 Max. Load
- 8.6 m / 344 in
- CH135S - 8.3 Outreach
- 2,090 kg / 4,598 lb
- CH135S - 8.3 Weight
Waratah offers versatile, purpose-built harvester, forestry and logging cranes. These cranes are forest-ready, dramatically increase the working zone and provide optimum height and lift capacity.
- 1,424 kg / 3,140 lb
- CH175 - 9.0 Max. Load
- 9.3 m / 372 in
- CH175 - 9.0 Outreach
- 2,570 kg / 5,654 lb
- CH175 - 9.0 Weight
Waratah offers all-around purpose-built forwarder cranes. These booms increase the ability to work close to the carrier and are forest-ready. They provide optimum height and lift capacity.
- 730 kg / 1,609.3 lb
- CF172 Max. Load
- 7.2 m / 283 in
- CF172 Outreach
- 1,220 kg / 2,689 lb
- CF172 Weight
Waratah offers all-around purpose-built forwarder cranes. These booms increase the ability to work close to the carrier and are forest-ready. They provide optimum height and lift capacity.
- 1,080 kg / 2,381 lb
- CF572 Max. Load
- 7.2 m / 283 in
- CF572 Outreach
- 1,225 kg / 2,700 lb
- CF572 Weight
Waratah offers all-around purpose-built forwarder cranes. These booms increase the ability to work close to the carrier and are forest-ready. They provide optimum height and lift capacity.
- 1,390 kg / 3,064 lb
- CF772 Max. Load
- 7.2 m / 283 in
- CF772 Outreach
- 1,510 kg / 3,329 lb
- CF772 Weight
Waratah offers all-around purpose-built forwarder cranes. These booms increase the ability to work close to the carrier and are forest-ready. They provide optimum height and lift capacity.
- 1,400 kg / 3,086 lb
- CF772S Max. Load
- 7.2 m / 283 in
- CF772S Outreach
- 1,710 kg / 3,769 lb
- CF772S Weight
Waratah offers all-around purpose-built forwarder cranes. These booms increase the ability to work close to the carrier and are forest-ready. They provide optimum height and lift capacity.
- 1,650 kg / 3,638 lb
- CF873 Max. Load
- 7.3 m / 287 in
- CF873 Outreach
- 2,010 kg / 4,431 lb
- CF873 Weight
Waratah's TimberRite is an extraordinarily accurate measuring system that generates versatile operational reports to monitor uptime and productivity.
- Wireless Data Transfer
- Maximum Productivity
- Intelligent Control
- Real-Time Information
-
